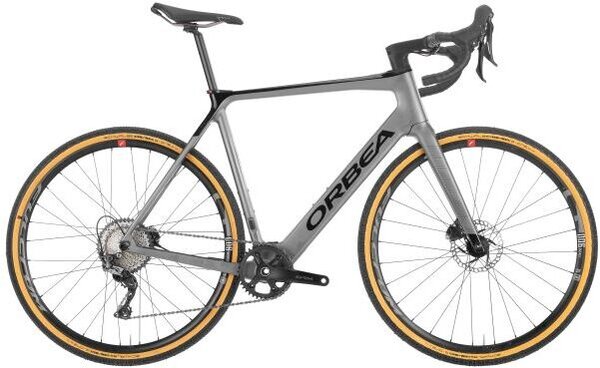

Orbea ORBEA GAIN M30

E-bikes are designed to remove the barriers that keep many people from experiencing the world on two wheels. Steep hills feel a little flatter and long distances feel a little shorter on an e-bike. The Orbea Gain M30 1X E-Bike is designed to improve your rides, not dominate them. It provides pedal assistance so you can ride farther. It has an OMR carbon frame that has internal cable routing, an internal battery, and integrated front and rear lights.

The M30 version of the Orbea Gain comes with a Shimano GRX 11-speed drivetrain. The gear combination is perfect for climbing, flats, and descending. Shimano RX400 hydraulic disc brakes provide excellent stopping power so you can descend with confidence. Fulcrum E-Racing 900 wheels are paired with Schwalbe G-One Bite tires that can be set up tubeless for a smoother ride, better traction, and fewer flats.

FEATURES
OMR carbon frame with ICR cable routing and integrated front and rear lights
Wide tire clearance for up to 40mm tires
Shimano GRX drivetrain provides reliable shifting in all-terrain
Shimano RX400 hydraulic disc brakes offer confidence-inspiring stopping power
Fulcrum E-Racing 900 wheels paired with Schwalbe G-One Bite TLE tires

SPECIFICATIONS
FRAME OMR Monocoque Carbon
FORK Carbon Fiber
REAR SHOCK -
HEADSET Acros Alloy 1.5" Internal Cable Routing
SHIFTERS Shimano ST-RX600
FRONT DERAILLEUR Nope
REAR DERAILLEUR Shimano RX812 GS
CRANKSET Shimano GRX RX600 40T
BOTTOM BRACKET -
CHAIN KMC X11
CASSETTE Shimano CS-M7000 11-40T
BRAKES Shimano RX400 Hydraulic
WHEELSET Fulcrum E-Racing 900
TIRES Schwalbe G-One Bite, 700 x 38c, RaceGuard, TLE, ADDIX
HANDLEBAR OC1 Road, 80mm Reach, 125mm Drop
STEM OC1 31.8mm Interface, -6°
GRIPS/BAR TAPE Orbea Anti-Slippery/Shock Proof
SEATPOST OC2 Carbon 27.2 Offset 20
SEATCLAMP Integrated
SADDLE Selle Royal Asphalt GR
INTENDED USE Road, Gravel, Adventure, Commuter
MOTOR Ebikemotion X35 Plus 20mph
BATTERY Ebikemotion 36V/6.9A 248Wh ANT+
DISPLAY Ebikemotion Pulsar One Monochrome ANT+ LEV
